EM990 Electromagnetic Wave Dual Channel

Product Configuration:

Single channel (two doors + one main unit + base): 3768 yuan/set

Dual channel (three doors + one main unit + base): 5418 yuan/set

Contact customer service to find out the price of multiple

Single-channel link:https://detail.1688.com/offer/577855157766.html?spm=a26286.8251493.0.0.221425b2pF7ung

Applicable places: Library, bookstore, video store

---System parameters:

● Anti-theft equipment with elegant appearance, novel design, acrylic material used in the whole machine, one-time mold production, not easy to deform, corrosion resistance, heat and weather resistance, dimensional stability and impact resistance.

● We advocate green environmental protection and anti-theft. The product has a power of only 5W, a long service life, low power consumption, and no radiation to the human body.

■ Technical indicators:
● Comprehensive alarm rate 98%
● Alarm method: sound and light alarm

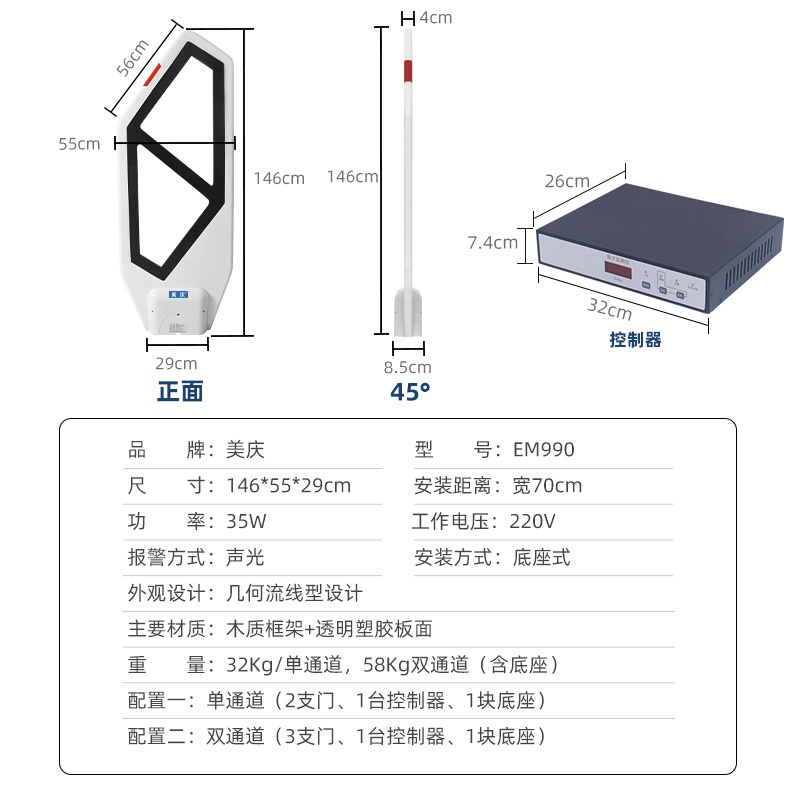

  ●   Standard base plate: channel width: 80cm (fix screw holes to screw holes)

 ● Production material: solid wood carving + fiberglass, no Easy Deformation, no Easy Discoloration, crystal clear, strong resistance to wear

---Scope of application:

◇ Suitable for libraries, bookstores, audio-visual stores and various printed materials and audio-visual products. The anti-theft and anti-theft magnetic strips are installed in the gaps of books, which are well concealed, easy to operate and low cost.
◇ Suitable for drug supermarkets, a 6CM-8CM magnetic strip can be inserted into the medicine box to effectively control the loss of medicines. For aluminum foil, tin foil-filled medicines also have a protective effect.
◇ Suitable for clothing supermarkets, you can solve the problem of lost clothing by attaching a hard stick to the clothing or placing a magnetic strip in the clothing box.
◇ It is suitable for department stores, cosmetics supermarkets, food supermarkets, inserting a magnetic strip into the product or putting a magnetic strip on the outer packaging of the product to achieve the purpose of anti-theft. Liquid products can be packed in liquid using plastic-sealed magnetic strips, which is more concealed. Mobile phones, MP3s, external hard drives, laptops, etc. are all effectively protected.

---Engineering Installation Rules：

Field Rules:

①Provide dedicated power sockets at the management desk. And connected to the ground wire

②There should be no large areas of metal within 1 meter around the inspection door, such as iron frames, iron tables, etc. If the library door is stainless steel or aluminum alloy, try to stay away from it as far as possible, around 50CM. The specific information should be based on on-site measurements.

③The distance between the detection door and the anti-theft host must be more than 1 meter.

Installation form rules:

①Pre-buried pipelines: Use pre-buried 25PVC pipes. Double core shielded wire for detection gate and host.

②Cutting the ground: After placing the shielding wire into the ground cutting area, ensure that the ground surface and the metal U-shaped groove are at the same level. And we must ensure that there are no leakage lines or cave collapses.

③Arc-shaped metal wire groove: Ensure that the wire groove is glued to the ground, cleaned and then placed to fix it, and make the wire groove direction form an I-shape with the two anti-theft antennas.

④Base type: The connecting shield wire is neatly tucked into the base slot, and the tape must be flat-taped to ensure that the connecting wire is not damaged when the device slides.
